Verify Tree Path

This is a pre-built action available under the Captured Tree Element from the SAP GUI Application. The functionality of this action in Avo Assure is to verify if the specified node path exists within the hierarchical tree structure.

Syntax

Input Value: <Path1>;<Path2>;…;<PathN>;<>;<Column Data>(optional)>

Argument
Description

<Path1>;<Path2>;…;<PathN> (Required)

Provide the hierarchical path of the tree node, with each level separated by a semicolon.

<> (Optional)

Leave this as blank. Note: This is used when optional values are provided.

<ColumnData> (Optional)

Enter the column data value.

Output Value

Argument
Description

<Dynamic Variable> (Optional);<Dynamic Variable> (Optional)

This dynamic variable holds the execution status as True or False.

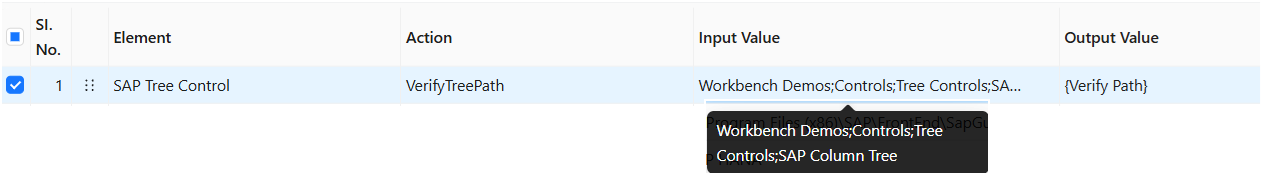

Example 1

Verifies whether a specified path exists in the tree structure

The VerifyTreePath action takes the value from the Input Value column (e.g., Workbench Demos;Controls;Tree Controls;SAP Column Tree) and checks if the specified path exists in the tree. The verification result is stored in the {Verify Path} variable True (if the path exists) or False (if the path does not exist).

Example 2 Verifies whether a specific tree path exists in the SAP GUI tree structure

The VerifyTreePath action takes the node path from the Input Value column (e.g., Workbench Demos;Controls;Tree Controls;SAP Column Tree;<>;SAP Column Tree Column Tree) and checks if the specified path exists in the tree. The result of the verification is stored in the {Verify Path} variable as True (if the path exists) or False (if the path does not exist).
