Scroll Right IRIS

This is a pre-built action available under the Captured Element from the Desktop Application using the IRIS method. The functionality of this action in Avo Assure is to perform a horizontal scroll to the right on a captured IRIS object during debugging or execution. The result of the action is stored in the provided output variable.

Syntax

Input Value: <count>;<type(optional)>

Argument
Description

<count>(Required)

Enter a numeric value representing how many times the screen should scroll right

<type>(Optional)

Specified as 1, sets the scroll thumb at the middle and scrolls right from the center the given number of times

Output Value

Argument
Description

<Dynamic Variable>(Optional);<Dynamic Variable>(Optional)

This dynamic variable holds the status as True (if the scroll-right operation succeeded) or False (if it failed)

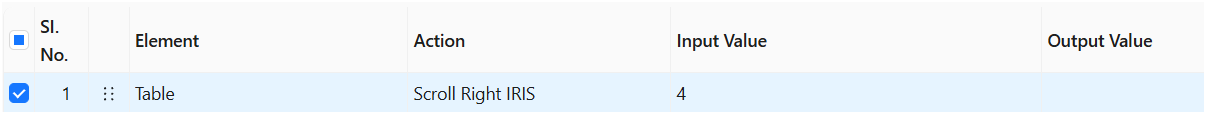

Example 1

Scrolls right within a scrollable element in the Desktop application by a specified number of steps

The Scroll Right IRIS action takes the value from the Input Value column (e.g., 4), where 4 represents the number of scroll steps. It scrolls the captured scrollable element to the right using the IRIS method.

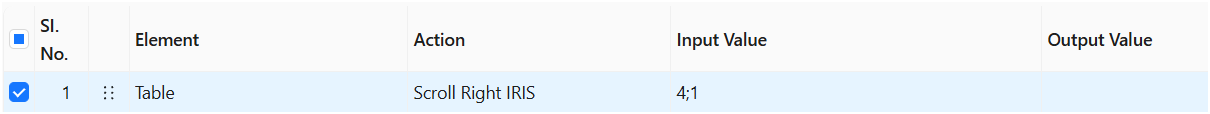

Example 2

Scrolls right within a scrollable element in the Desktop application by a specified number of steps

The Scroll Right IRIS action takes the value from the Input Value column (e.g., 4;1), where 4 represents the number of scroll steps and 1 (optional type) sets the scroll thumb to the middle of the scroll bar, then scrolls right the specified number of times from that position. It performs the scroll using the IRIS method.
