Scroll Up IRIS

The This is a pre-built action available under the Captured Element from the Desktop Application using the IRIS method. The functionality of this action in Avo Assure is to perform a vertical scroll-up operation on a captured IRIS object.

Syntax

Input Value: <count>;<type(optional)>

Argument
Description

<count>(Required)

Enter a numeric value representing how many times the screen should scroll up

<type>(Optional)

Specified as 1, sets the scroll thumb at the middle and scrolls up from the center the given number of times

Output Value

Argument
Description

<Dynamic Variable>(Optional);<Dynamic Variable>(Optional)

This dynamic variable holds the status as True (if the scroll-up operation succeeded) or False (if it failed)

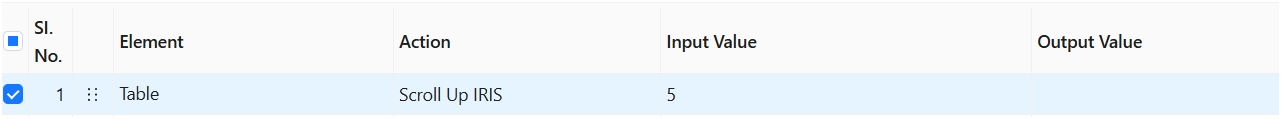

Example 1

Scrolls up within a scrollable element by a specified number of steps

The Scroll Up IRIS action takes the value from the Input Value column (e.g., 5), where 5 represents the number of scroll steps. It scrolls up the captured scrollable element by the specified count.

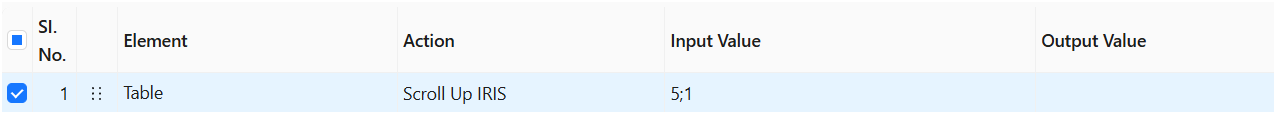

Example 2

Scrolls up within a scrollable element by a specified count

The Scroll Up IRIS action takes the value from the Input Value column (e.g., 5;1), where 5 represents the number of scroll steps and 1 (optional type) sets the scroll thumb to the middle of the scroll bar, then scrolls up the specified number of times from that position.
