# Import & Export Element Repository

### Import Repository

The Import Elements function allows you to retrieve elements from the local machine and store them in a project which can be reused, serving as a backup for future reference.

Step-by-step process to import element repository in Avo Assure:

{% stepper %}
{% step %}

#### **Navigate to Element Repository window**

Select **Repository** from left pane of screen to import, click **Import** icon from the top right pane of Element Repository window.

 ![](https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FwBkSWn5mmcdiOpavIqV9%2Fimage.png?alt=media\&token=830da4f4-dd2d-4f4c-82ca-dbd603b8d225)
{% endstep %}

{% step %}

#### Choose file and import

Click Choose File button and select Json file from the local machine, then click import button to import in Repository

<img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FFxeaK68kuF5kGgtfCSmb%2Fimage.png?alt=media&#x26;token=62a1cd02-467d-435d-b146-f8da2eb0f620" alt="" data-size="original">
{% endstep %}

{% step %}

#### Save the file

Click Save button located at top right corner
{% endstep %}
{% endstepper %}

### Export Repository&#x20;

The Export Elements function is used to retrieve elements from the element repository and save them to a local machine or directly export them into a new project for future reference or backup.&#x20;

Step-by-step process to export element repository in Avo Assure:&#x20;

Navigate to Element Repository window&#x20;

{% tabs %}
{% tab title="Step 1" %}

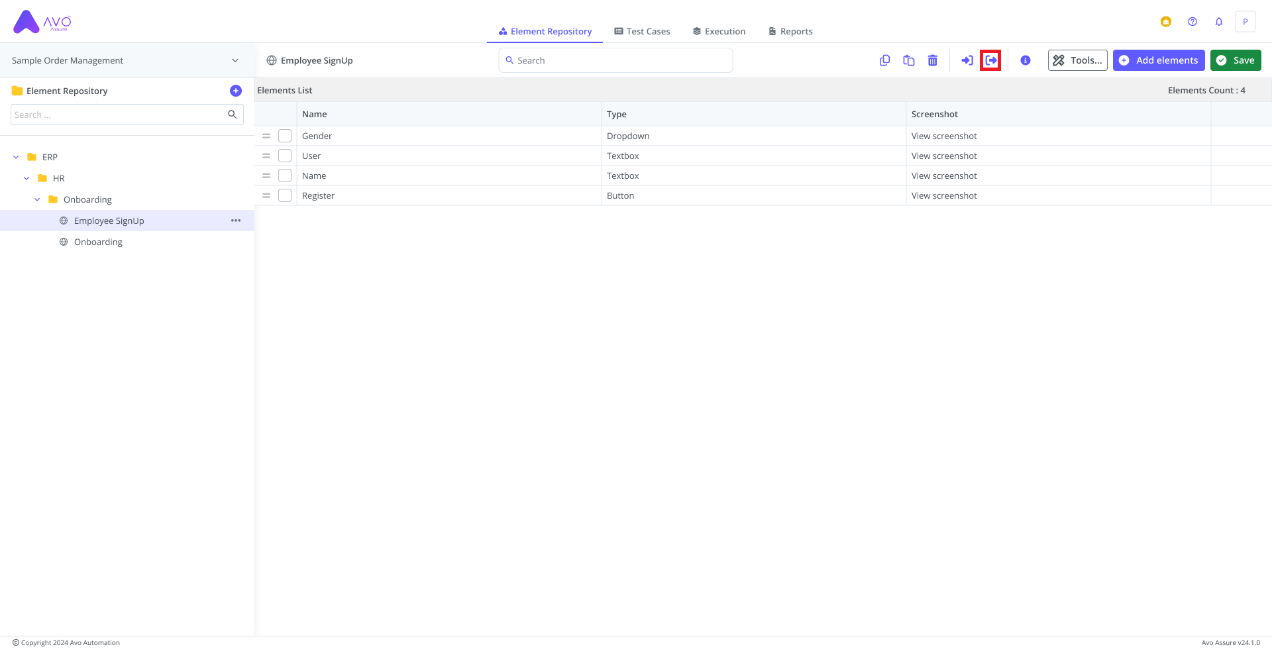

Select **Repository** from left pane of screen to export, click **Export** icon from the top right pane of Element Repository window&#x20;

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2Fl3wSDa69l2RfPJqiDjsR%2Fimage.png?alt=media&#x26;token=01a59ef5-cf05-4ff4-9ad4-663864f34e87" alt=""><figcaption></figcaption></figure>
{% endtab %}

{% tab title="Step 2" %}
Click Export button and exported file will be saved in downloads folder in machine

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FYE7JW9HaIkcDtRN2fAQC%2Fimage.png?alt=media&#x26;token=4090ff6f-dcd8-4486-9e56-d04c0baf21d2" alt=""><figcaption></figcaption></figure>
{% endtab %}
{% endtabs %}

### Information Panel of Repository&#x20;

Navigate to Element Repository window&#x20;

Click **eye** (Open Information) symbol from top right pane to get the element details&#x20;

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FXni7PMcnONnV713g1YfK%2Fimage.png?alt=media&#x26;token=0ece7624-2ba9-4689-9d18-31bd240cac6c" alt=""><figcaption></figcaption></figure>
