# Execute Test Case through Zephyr

Step-by-step process to execute Test Case through Avo Assure:

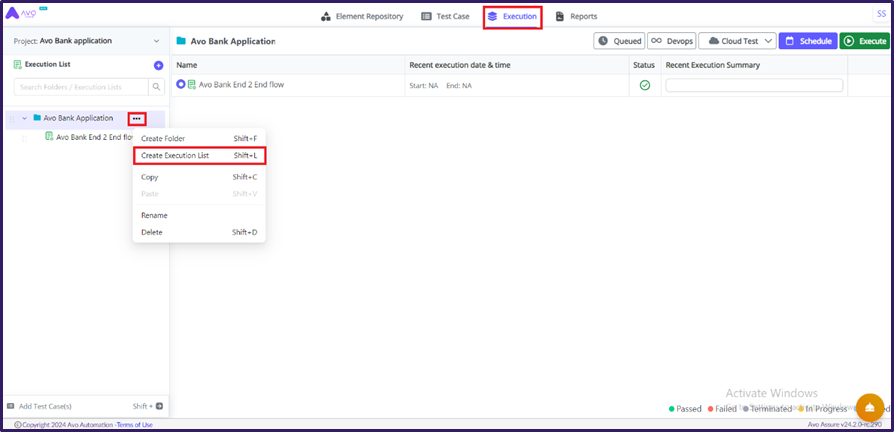

1. On **Execution** tab, Create **Execution** List

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FwgvSnBu45aXMKnAjqyOf%2Fimage.png?alt=media&#x26;token=e47099bd-7884-4ad9-bd47-d38371c1c5c8" alt=""><figcaption></figcaption></figure>

2. Select and Drag **Test Case** from Test Cases window

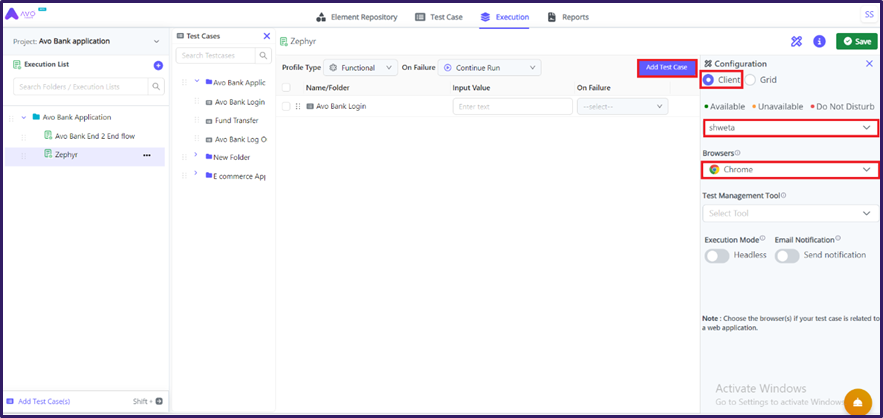

3. On the configuration window, select **Client** and **Browser** from their respective dropdown

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FwBPoOa1zRatgFGy3CAJM%2Fimage.png?alt=media&#x26;token=1abbc41b-f22e-41d9-b0a6-02a940fa1d76" alt=""><figcaption></figcaption></figure>

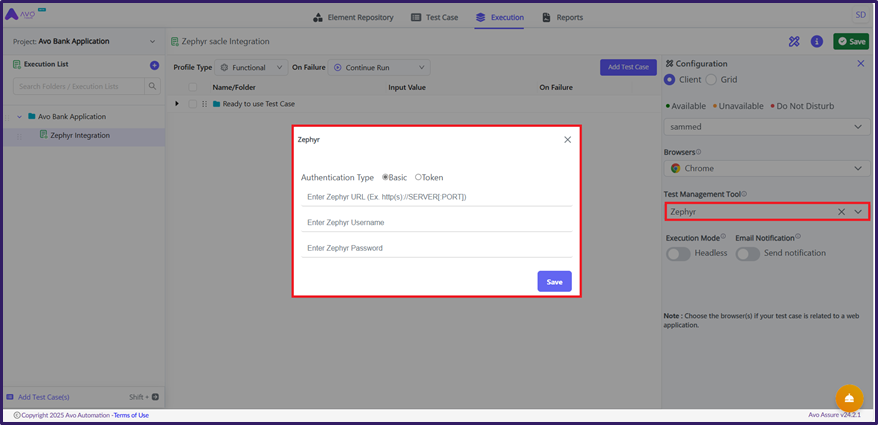

4. Select **Zephyr** as Test Management Tool, **Zephyr** pop up window will appear then enter credentials and click **Save** button from the pop up

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FLqgwxSQkEbZ2Df2YZKEO%2Fimage.png?alt=media&#x26;token=1170f257-761c-4128-a2d9-f5e6256533a3" alt=""><figcaption></figcaption></figure>

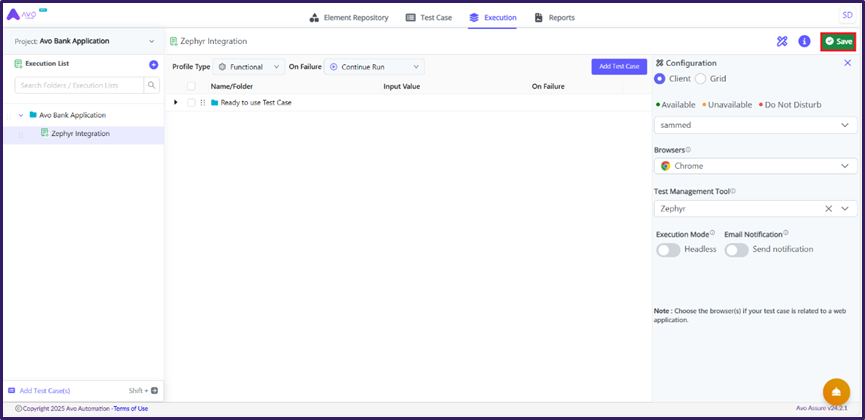

5. Click **Save** button to create Execution List successfully

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FjewXigBTxhszdTedOPbY%2Fimage.png?alt=media&#x26;token=5acbead6-bd5c-42da-aa47-3cf0951781cd" alt=""><figcaption></figcaption></figure>

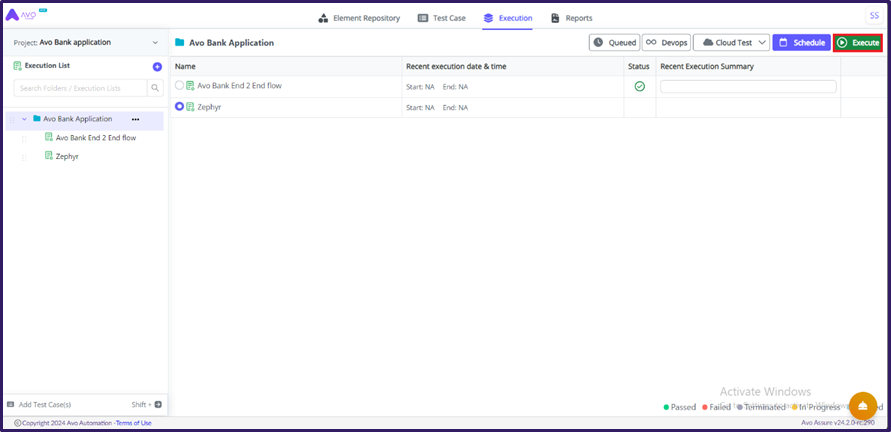

6. Click **Execute** button, then auto populated Execute Now window appears on the screen

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FWyx7VLUloGJPi88O1l7D%2Fimage.png?alt=media&#x26;token=01e64b54-8182-4a0e-b703-6228ebad9127" alt=""><figcaption></figcaption></figure>

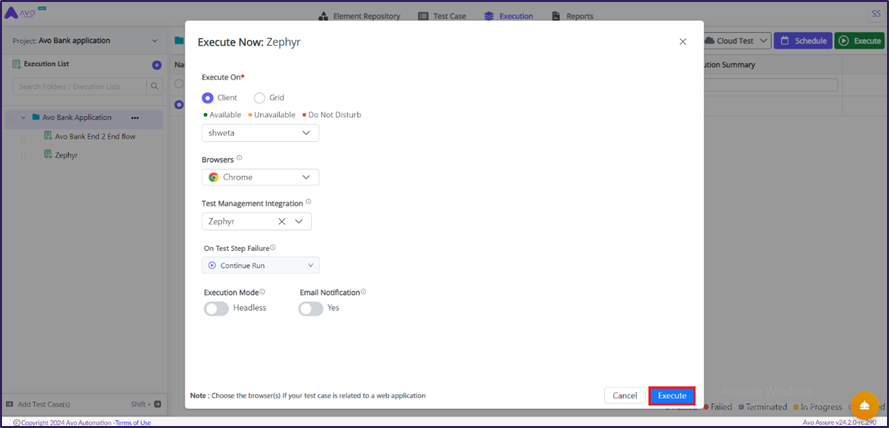

7. Click **Execute** button to start the execution

{% hint style="warning" %}
***Note:** If user have already selected Test Management Tool while configuring the execution list then it will auto populated*
{% endhint %}

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2F3joEPNH2nACpXeWbMHPH%2Fimage.png?alt=media&#x26;token=ff3ccae9-2ae5-4a67-a3a4-cd46a8e9f99d" alt=""><figcaption></figcaption></figure>

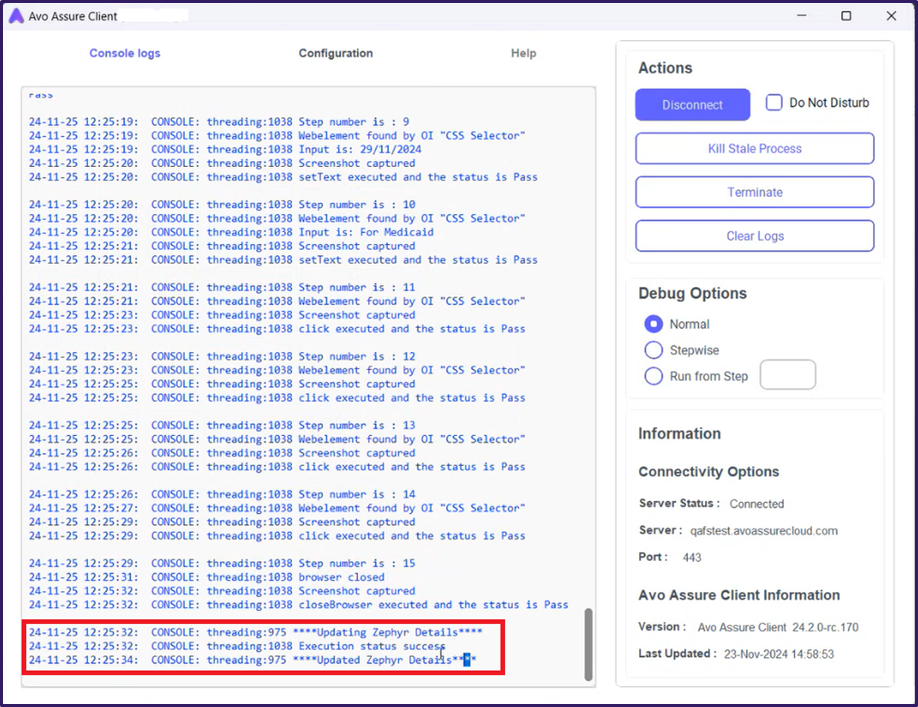

After execution user can see the message in Avo Assure Client, like Updated Zephyr details.

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FY7L5s3xr5QU3TYfV52V3%2Fimage.png?alt=media&#x26;token=8753f884-64c1-4c8e-99ab-9e2105014f87" alt=""><figcaption></figcaption></figure>
