# Execution through Client/Agent/Grid

## Executing through Client

To execute the execution through client, perform the following actions:&#x20;

1. On the **Home** page, select required project and select **Design Studio**.&#x20;
2. Select the **Execution** tab.
3. Expand Folder and select **Execution List** for configurations. &#x20;

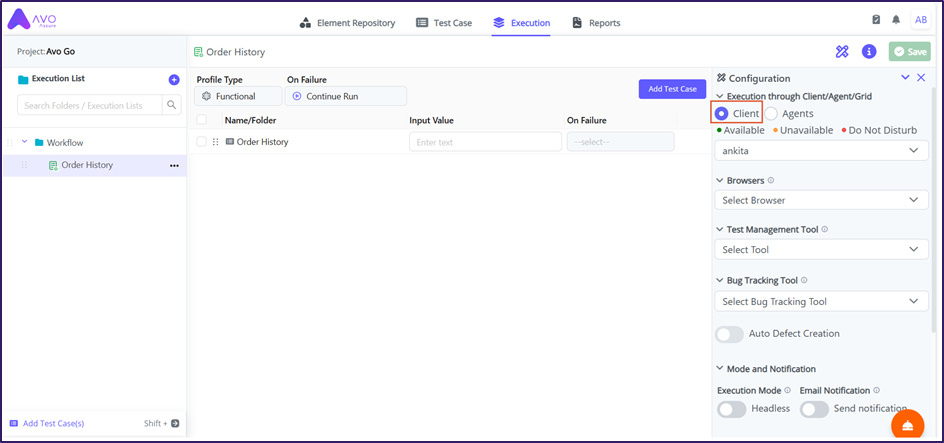

4. From **Configurations** page, select **Client**.&#x20;
5. From **Client** dropdown, select active client.

{% hint style="info" %}
**Note**: A single instance does not support running multiple clients on the same machine at the same time. This gives an error as **Array** **variable has incorrect number of subscripts or subscript dimension range exceeded***.*
{% endhint %}

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FmTXcJzlYZaE8VQDypsXM%2Fimage.png?alt=media&#x26;token=8c7e6da9-ed80-4f98-aef3-3c2670c27b46" alt=""><figcaption></figcaption></figure>

6. From **Browsers** dropdown and select **Browser**.&#x20;
7. Select **Save** to save all the changes.&#x20;
8. Select parent folder and select **Execute**. The **Execution Now** dialog opens.&#x20;
9. Select **Execute** to execute the **Execution List**.&#x20;

## Executing through Agent/Grid

To execute the execution through agent/grid, perform the following actions:

1. On the **Home** page, select required project and select **Design Studio**.&#x20;
2. Select the **Execution** tab.&#x20;
3. Expand Folder and select **Execution List** for configurations. &#x20;

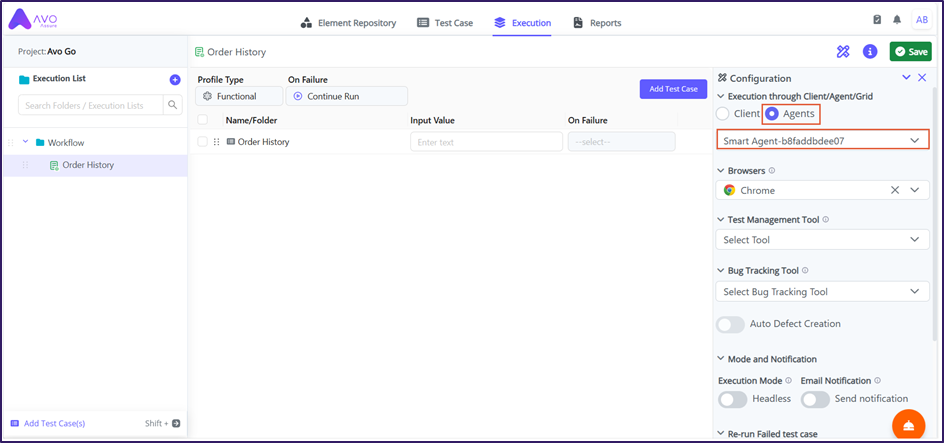

4. From **Configurations** page, select **Agent**.&#x20;

{% hint style="info" %}
**Note**:&#x20;

* A single instance does not support running multiple agents on the same machine at the same time. This given an error as **Array** **variable has incorrect number of subscripts or subscript dimension range exceeded***.*
* To learn how to Install Avo Assure **Agent**, refer to [Agent](https://docs.avoautomation.com/administration/agent).
* To learn how to create Avo Assure **Grid**, refer to [Grid](https://docs.avoautomation.com/administration/grid).
  {% endhint %}

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2F9bUOMys7dHbfwYyMwd6k%2Fimage.png?alt=media&#x26;token=fca11ce6-7ff2-4298-aae7-c83dcf1604e9" alt=""><figcaption></figcaption></figure>

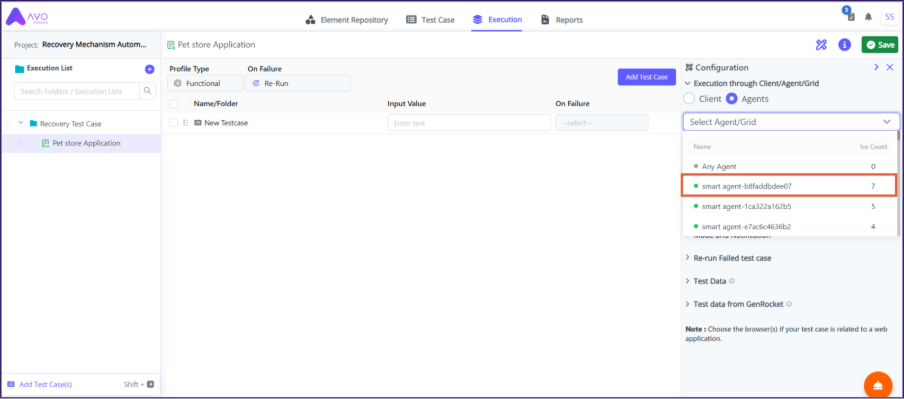

5. From **Agent** dropdown, select active or created agent.

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FsSWaxA3vaTlEZt8I98bV%2Funknown.png?alt=media&#x26;token=a1278318-24b6-4a8e-8ce9-881be7b15f18" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}

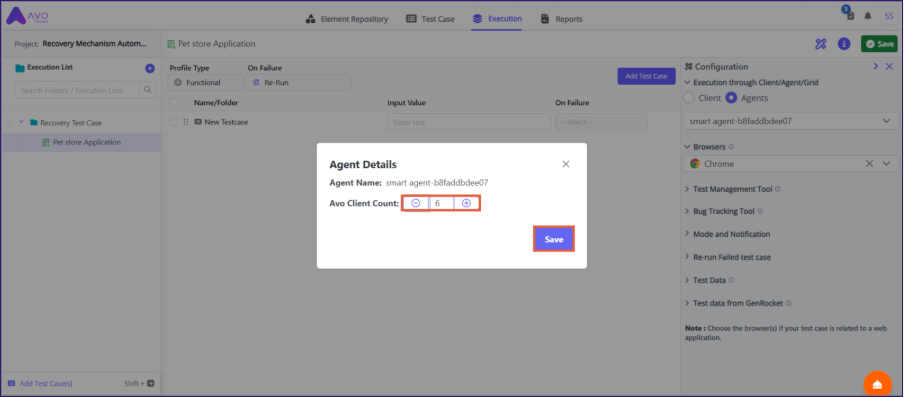

**Note**: By selecting number besides Agent name, Agent’s client count can be increased or decreased.
{% endhint %}

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FEcwkALVvix3f60fZbiGd%2Funknown.png?alt=media&#x26;token=5a21b326-62c7-46b4-aeff-87f51970826b" alt=""><figcaption></figcaption></figure>

6. From **Browsers** dropdown, select **Browser**.&#x20;
7. Select **Save** to save all the changes.&#x20;

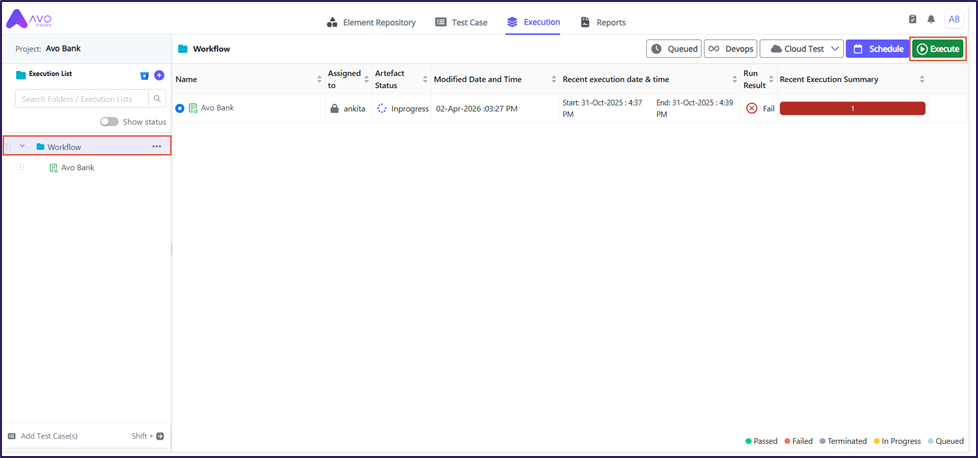

8. Select parent folder and select **Execute**. The **Execution Now** dialog opens.

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2F0ZryF321J5Mmn3SwgIGk%2Fimage.png?alt=media&#x26;token=c4c53ffe-e908-4833-bacc-d3ddb823dd4c" alt=""><figcaption></figcaption></figure>

9. Select **Execute** to execute the Execution List.

{% hint style="info" %}

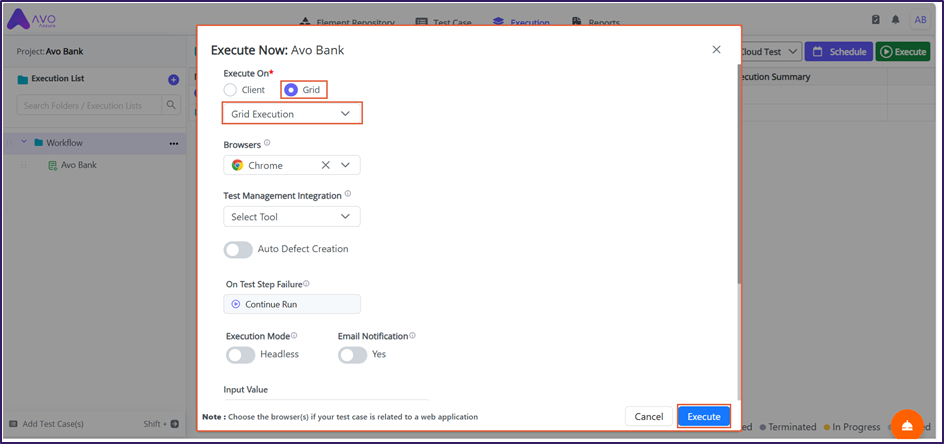

**Note**: After configuring the settings while creating the Execution List, you can validate and modify them in the **Execute Now** window.
{% endhint %}

<figure><img src="https://2174257472-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fk8QZzXZMIJSStKAzDSTu%2Fuploads%2FMOPzppA8HuPHcswWjQwe%2Fimage.png?alt=media&#x26;token=b031e3a8-47c8-4f9f-8d6d-c8b177d0c1db" alt=""><figcaption></figcaption></figure>
